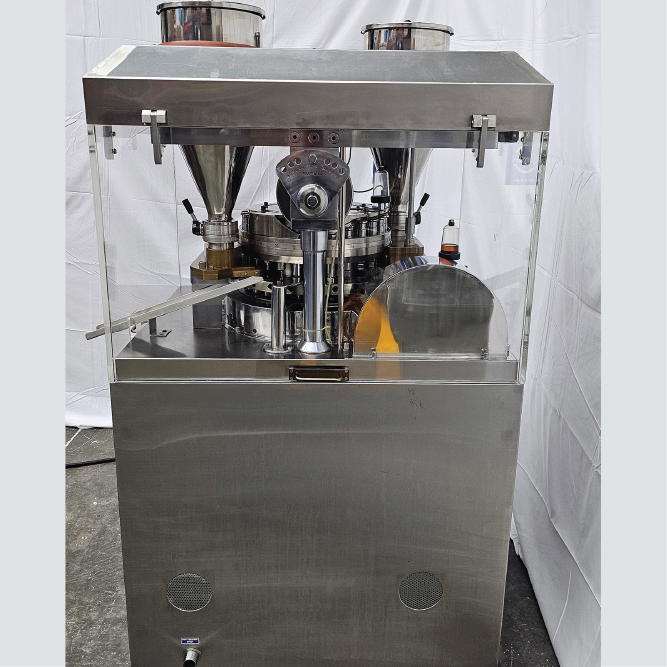

New Double-Sided Rotary Tablet Press – Karnavati RIMEK UNIK I FC Tablet Press – 27 Station “D” Tooling

Double-Sided Rotary Tablet Press – Karnavati RIMEK UNIK I FC Tablet Press – 27 Station “D” Tooling

Condition: New – We bought this Double-Sided Rotary Tablet Press a few years ago with the intention of making tablets, but we decided to make liquid products instead, so we never used it.

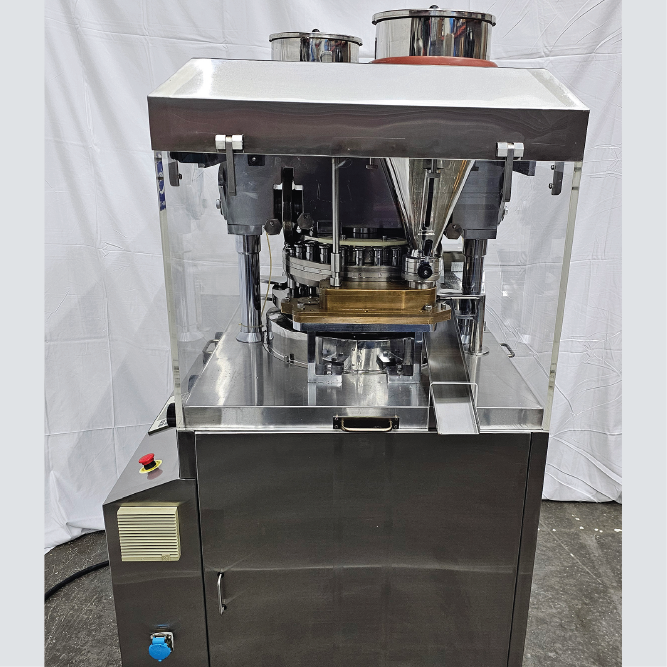

Description: We are offering a brand-new Karnavati RIMEK UNIK I FC Tablet Press equipped with 27 stations for “D” tooling. This high-performance machine is designed for efficient and precise tablet production, making it an excellent addition to any pharmaceutical manufacturing setup.

Key Features:

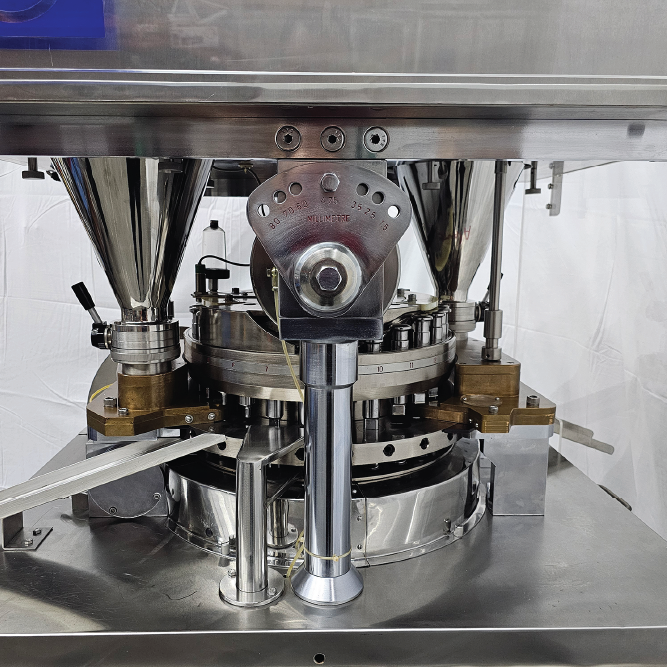

• • Double-Sided Rotary Tablet Press: Enhances production efficiency by compressing tablets on both sides simultaneously.
  • 10 Ton Main Compression: Provides robust compression force suitable for a wide range of tablet formulations.
  • Turret with Worm and Worm Ring Drive System: Ensures smooth and reliable operation with precise control.

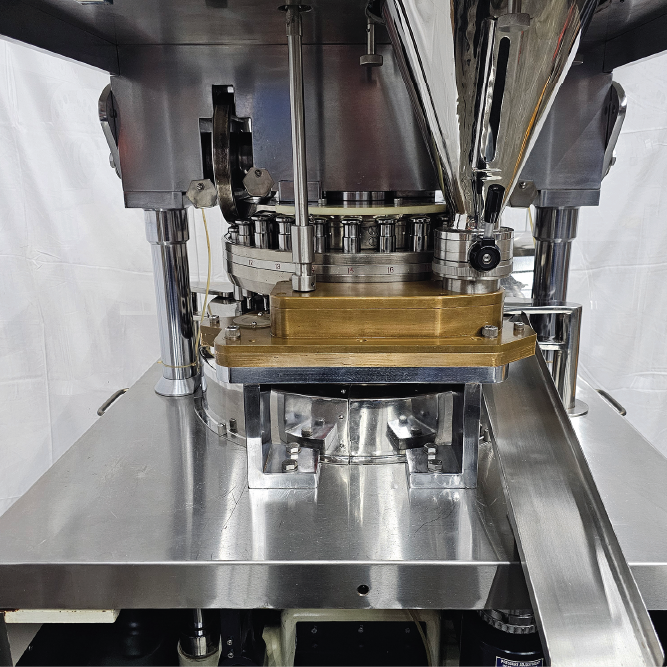

  • Two-Piece Turret with Electroless Nickel Plating (ELNP) Coating: Offers enhanced durability and corrosion resistance.
  • Manual Control for Weight and Thickness Adjustment: Allows for precise customization of tablet specifications.

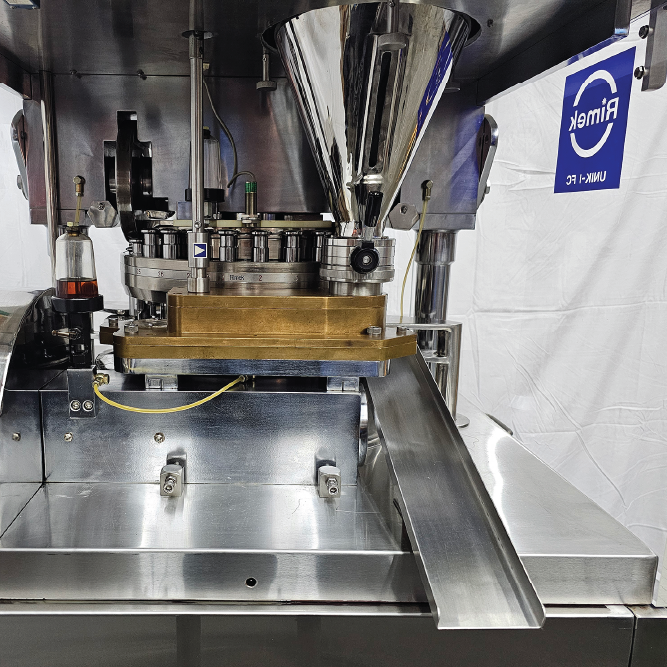

  • Three-Paddle Force Feeding System: Ensures consistent and uniform filling of die cavities.

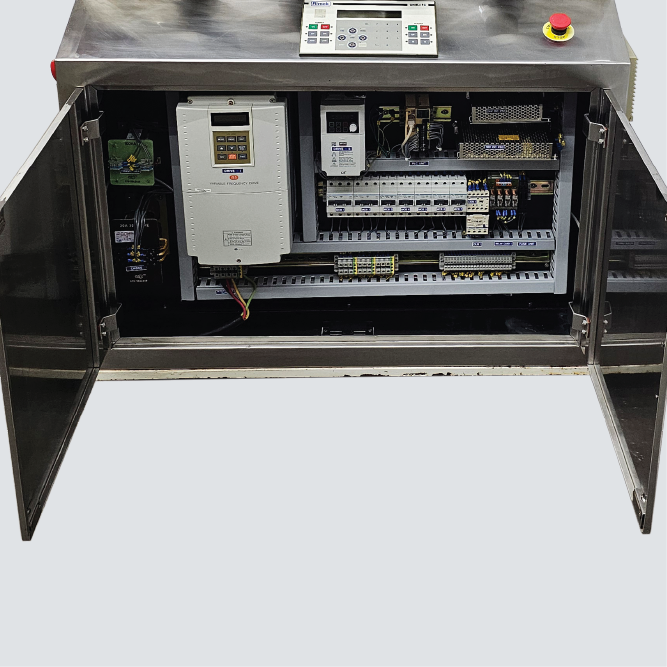

  • PLC Control with Touch Screen Interface: Facilitates user-friendly operation and monitoring.

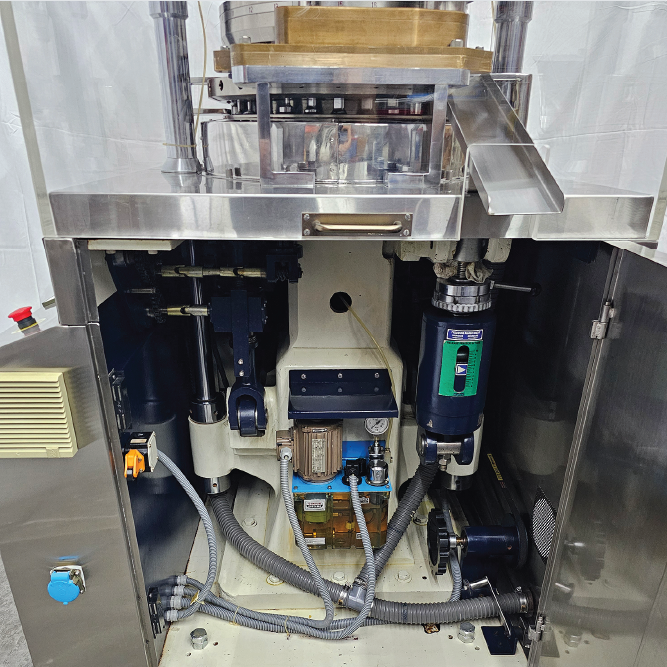

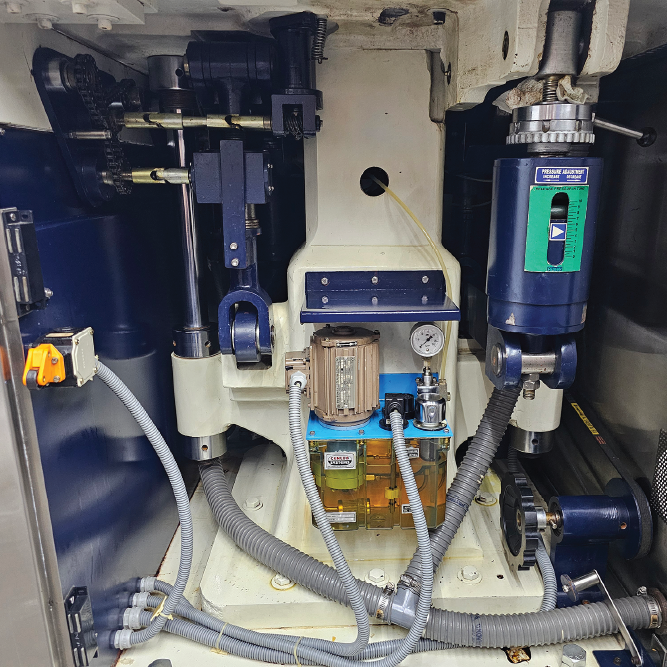

  • Auto Lubrication System: Reduces maintenance requirements and extends machine lifespan.
  • Drip Feed Lubrication for Punches: Ensures optimal lubrication of punches for smooth operation.
  • Gravity Feed Frame: Provides efficient material flow into the die cavities.

Technical Specifications:

• • Number of Stations: 27
  • Tooling Type: D
  • Maximum Tablet Diameter: 25 mm
  • Maximum Depth of Fill: 20 mm
  • Maximum Tablet Thickness: 8 mm
  • Maximum Tablet Output per Hour: 155,520 tablets
  • Maximum Turret RPM: 48
  • Upper Punch Penetration: 1.5–8 mm for single-layer tablets; 2.7–9 mm for double-layer tablets
  • Main Electric Motor: 5.5 kW / 7.5 HP
  • Force Feeder Motor (Optional): 0.18 kW / 0.25 HP
  • Input Power Supply: 220 / 380 / 415 / 480 V ±10%, 3 Phase, 50/60 Hz
  • Machine Dimensions (L x W x H): 1,024 x 1,024 x 1,860 mm
  • Net Weight: 1,620 kg
  • Gross Weight: 1,920 kg
  • Case Size (L x W x H): 1,170 x 1,475 x 2,000 mm

Electrical Specifications:

• • Voltage: 230V
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Main Power On/Off Switches: Included

Pricing Details:

• • Selling Price: $40,000 (FOB Miami, New, as is, in perfect working condition)
  • Crating Available at Cost: $300

Inspection: The machinery can be inspected upon request.

This Karnavati RIMEK UNIK I FC Tablet Press is an ideal solution for pharmaceutical manufacturers seeking a reliable and efficient tablet compression machine. Its advanced features and robust construction ensure consistent performance and high-quality tablet production.
